Water-proof Slip Ring With Ip66 Optional For The Marine Engineer Equipment

  • 1
  • 2
  • 3

Brand Name : CENO

Model Number : ECN000-02P1-IP66

Certification : CE,RoHS,UL,ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal,Western Union, L/C

Supply Ability : 10000pcs month

Delivery Time : Off the shelf

Packaging Details : Carton

Circuit number & Current : 2 * Electric Power

Rating Voltage : 220VAC

Dielectric strength : ≥500VAC@50Hz

Isolation resistance : ≥500MΩ@500VDC

Electrical Noise : ≤30mΩ (50rpm)

Contact material : Precious Metal

Housing material : Stainless steel

Operating speed : 0~3 rpm

IP Grade : IP66

Working temperature : -20℃ ~ +80℃

Working humidity : ≤ 60%

Lead wire length : As Request

Lead wire size : As Request

Installation way : Flange installation

Contact Now

Water-proof slip ring with ip66 optional for the Marine engineer equipment



ECN000-02P1-IP66 is CENO function slip ring with protection grade IP66 and can be to IP67 IP68 as different customers application. CENO have kinds of function slip ring features high speed, anti-explosion, anti-high/low temperature, multi-channels, large size or integrate signal/data. The water-proof slip ring is designed for the special equipment that works in the environment with high humidity, corrosion or under water. For more information please contact CENO to get special design for your application.





Features

  • IP grade IP66 IP67 IP68 option
  • Anti-corrosion and high pressure
  • Can integrate diff data or signal
  • Compact structure stable work
  • Flange design and install easy



Applications

  • Marine engineer equipment
  • Wind turbine generator
  • Drilling platform
  • Filling machinery
  • Offshore hydrogen production



Optional

  • Circuits, Voltage, Current
  • Contact / Housing MaterialsLead wire size / length
  • Working speed
  • IP Grad






Specification

ECN000-02P1-IP66

 Specification
Circuits & Current 2 circuits Electric signal
Rating Voltage 220VAC/VDC
Dielectric strength ≥500VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Electrical Noise Max 30mΩ (50rpm)
Working temperature -20°C~+80°C
Working humidity 60%RH
IP protection grade IP66
Working Speed 0~3 rpm
Outer Diameter Ø50mm
Contact Material Precious Metal
Housing Material Stainless steel
Lead wire size As Customized
Lead wire length AS Customized
Installation Flange installation

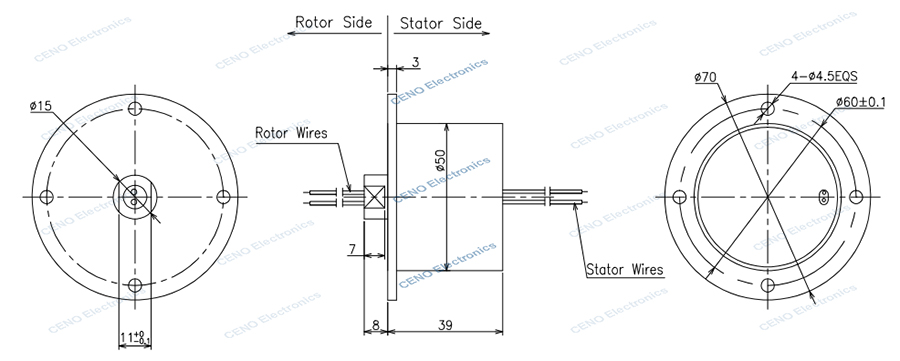

Outline drawing

Water-proof Slip Ring With Ip66 Optional For The Marine Engineer Equipment





Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification
ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
