IP65 Waterproof 10mm Through Bore Slip Ring For Canned Equipment
Inner bore size 10mm waterproof slip ring with IP65 grade,integrate power & CANBUS signal,working speed 0-30 rpm.
ECN010-02P-07S is a waterproof slip ring with inner bore size 10mm .CENO's water-proof slip ring is designed for ships, harbor equipment,test equipment and some application which has water or moisture environment,to transmit precision signal, weak current, large current, high voltage. Meanwhile its design prevents the liquid seeping into the slip ring with the characteristics of low torque on rotation and low loss on signal transmission,as well as no need to do maintenance, low electrical noise, long lifespan and so on.the waterproof slip ring could be divided into multiple protection grade, such as IP65,IP67,IP68 and so on,can work under water 1000M.
Feature
- With Canbus signals
- IP Protection IP65
- High pressure resistant
- Power integrated signal
- Work under water 1000M
Application
- Canned equipment
- Food industry
- Medical equipment
- Vessel machinery
- Port machinery
- Drilling platform
- Oil well
Optional
- Through hole size
- Current rating and circuits number
- Signal type
- IP protection grade
Specification
| ECN010-02P-07S | Specification |
| Circuits & Current | 2*14A,5*signal,1*Canbus |
| Voltage | 0~24VAC/VDC |
| Dielectric strength | ≥500V@50Hz |
| Insulation resistance | ≥100MΩ@100VDC |
| Electrical noise | ≤10mΩ (50 rpm) |
| Operating speed | 0-30 rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy & stainless steel |
| IP grade | IP65 |
| Inner hole size | 10mm |

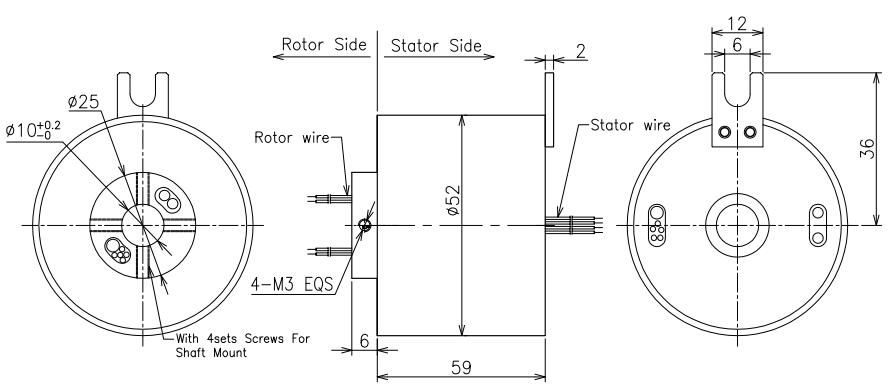

Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Why with CENO
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
