Ethernet Signal Slip Ring with Electric Power for Industry Robotic Arm

Brand Name : CENO

Model Number : ECN000-04P2-08S

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Current & Circuits : 12 circuits * Electric Power & Ethernet Signal

Rating Voltage : 480VAC/VDC

Dielectric strength : ≥1000VAC@50Hz;≥300VAC@50Hz

Isolation resistance : ≥500MΩ@500VDC;≥10MΩ@300VDC

Contact resistance : 20mΩ (50rpm)

Temperature : -20°C~+60°C

Working humidity : 60%RH

IP protection grade : IP51

Operating speed : 0~60rpm

External Diameter : Ø 86mm

Contact Material : Precious Metal

Housing Material : Aluminum Alloy

Lead wire size & length : As customized

Contact Now

Ethernet Signal Slip Ring with Electric Power for Industry Robotic Arm



ECN000-04P2-08S is CENO Ethernet signal slip ring with circuits electric power and signal for industry system. CENO’s Ethernet signal slip ring solutions have been developed to provide reliable product to allow transfer of the Ethernet protocol through a rotating interface. A wide range of product solutions are offered with combinations of data and power in multiple mechanical configurations to meet your application needs. For more information about how CENO slip ring can fit your equipment, please contact us.





Features

  • Combine Ethernet & Electric
  • Stable transmitting, no string code, low loss comply with EMC
  • Can be integrated various data
  • Install easy & Free maintenance



Applications

  • Automatic machine
  • Turntable testing machine
  • Intelligent housing system
  • Filling machineryMedical equipment



Optional

  • Circuit, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • Protection grade
  • Working speed







Specification

ECN000-04P2-08S

 Specification
Current & Circuits 4 circuits * 10A; 4circuits * 2A; 4circuits *Signal
Rating Voltage 0 ~ 480 VAC/VDC
Dielectric strength ≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance ≥50MΩ@500VDC; ≥10MΩ@300VDC
Contact resistance wave ≤ 20mΩ
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP51
Operating speed 0~60rpm
Outer diameter Ø86mm
Contact material Precious Metal
Housing material Aluminum Alloy
Lead wire length As customized
Installation way As customized

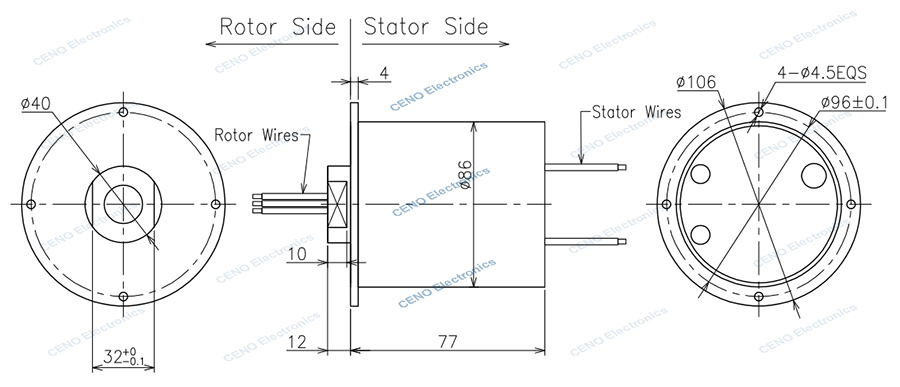

Outline drawing

Ethernet Signal Slip Ring with Electric Power for Industry Robotic Arm















Application

Ethernet Signal Slip Ring with Electric Power for Industry Robotic Arm







Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Ethernet Signal Slip Ring with Electric Power for Industry Robotic Arm



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Ethernet Signal Slip Ring with Electric Power for Industry Robotic Arm



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
