BLDC Slotless Motor with high efficiency quick response for robot power tools
Series: CNEC-16 Series BLDC Slotless Motor
PN# : CNEC1636
Power : 8 ~ 40W
Custom Configuration
If you want to know more information about how CENO Motor can fit your specification and application, please contact us.
Features
- High efficiency
- Quick response and Stable transmitting, no string code
- Small size & light weight
- Install easy & Free maintenance
Applications
- Power tools & Robot
- Industrial Control
- Filling machinery
- Fan Blower & power seat
- Medical equipment
Optional
- Output shaft
- Signals and data
- Lead wire
- Mounting hole
- Working speed
Specification
| CNEC-16 Series Parameter |
| MOTOR | Voltage | OUTPUT | OUTLEAD |
| Type | Length mm | Operating range | Nominal V | Output rating W | Rated torque m.Nm | Rating speed rpm | Signal |
| CNEC1636 | 36mm | 10~14 | 12 | 9.7 | 6 | 15800 | Hall |
| | | 22~26 | 24 | 19 | 5 | 37000 | |
| | | 32~38 | 36 | 19 | 5 | 37000 | |
| CNEC1644 | 44mm | 22~26 | 24 | 21.5 | 7.5 | 28000 | Hall |
| | | 28~32 | 30 | 21.5 | 7.5 | 28000 | |
| | | 32~38 | 36 | 21.5 | 7.5 | 27600 | |
| CNEC1656 | 56mm | 22~26 | 24 | 34.5 | 8.5 | 392000 | Hall |
| | | 28~32 | 30 | 33.5 | 8.5 | 384000 | |
| | | 32~38 | 36 | 34 | 8.5 | 389000 | |

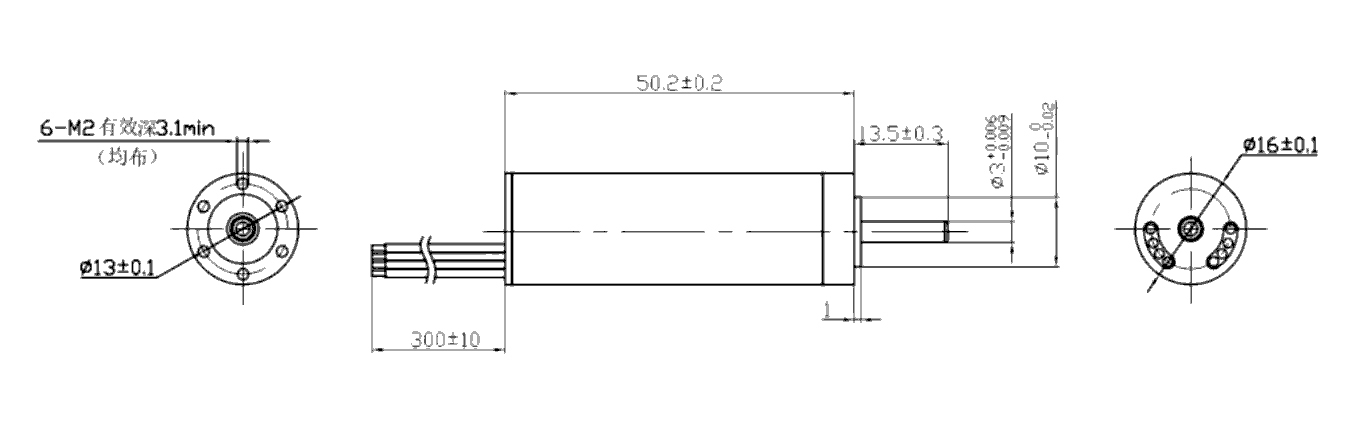

Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
