Up To 900MHz Signal Frequency Slip Ring With Coaxial Signal
The high frequency slip ring manufactured by CENO is composed of a two-channel microwave rotary joint and a precision conductive slip ring, which includes a two-channel microwave signal channel, a number of power supply channels and signal channels, and can be integrated with a precision absolute value encoder or a precision rotary transformer.The product has good performance, mainly used in radar antenna, moving through, moving in the receiving antenna.The product can change the number and installation size of conductive slip ring channels according to the actual use requirements, and can integrate multiple types of signal channels to meet the different needs of different occasions.
Feature
Application
- Medical treatment equipment
- Automation equipment
- Radar antenna
Option
Specification
| Parameter |
| Circuit | 1*coaxial signal,4*signal | Protection grade | IP54 |
| Voltage | 380VAC | Working temperature | -20°C ~ + 60°C |
| Insulation | ≥100 MΩ@500VDC | Rotating speed | 0~400rpm |
| Dielectric strength | ≥600VDC@50hz | Contact material | Gold to Gold |
| Electric noise | ≤60%RH | Housing material | Aluminum alloy oxidation black |

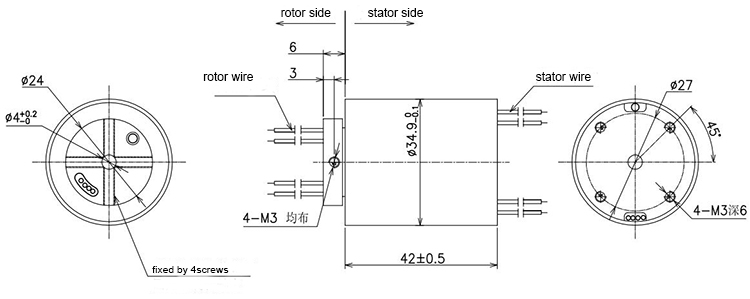

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
