Precious Matel Material Of Industrial Small Size Slip Ring For Lithium Battery Equipment
CENO company produce the industrial conductive slip ring from customer manufacturing.Using the industry-leading manufacturing process, CENO slip rings is with reliable quality, long service life, no need lubrication and other advantages,to meet customer requirements.CENO can provide many parameters for customer to choose ,such as outer diameter,inner diameter ,current,circuit number,IP protection.
Features
◆ High Protection level
◆ Reliable Contact ,stable performance
◆ compact size,light weight
Applications
◆ Marine insustrial equiment
◆ Automation equipment
◆Lithium battery equipment
Optional
◆ Circuit number
◆ IP protection
◆ Signal type
Specification
| ECNS000-086-03P-12S Specification | Picture |
| Current | 3*15A;12*1A |  |
| Working Temperature | -40℃~+80℃ |
| Protection Grade | IP54 |
| Working speed | 0~300rpm |
| Contact material | Precious metal |
| Rating Voltage | 380VAC |
| Lead Wire Size | AWG14# ;AWG22# |
| Lead Wire Length | Rotor:300mm stator 1000mm |

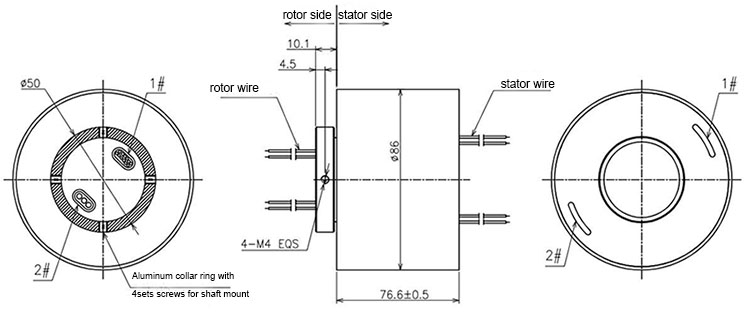

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
