Long Life And Maintenance Free Industrial Slip Ring For Automation Equipment
Slip ring is an electrical components which can connect the rotary part to transmit energy and signal.
The product in the picture is an industrial slip ring provided by our company CENO for an automation
equipment manufacturer. Due to its long service life, maintenance-free, multiple mixed channels and
no signal interference, it has made a good impression on the manufacturer.
Features
◆ High Protection level
◆ Reliable Contact ,stable performance
◆ Long life,maintenance-free
Applications
◆ Marine insustrial equiment
◆ Automation equipment
Optional
◆ Circuit number
◆ Current rating
◆ IP protection
◆ Signal type
Specification
| Model : ECN000-02P-20P3 Parameter |
| Working Humidity | Below 60%RH | Protection Grade | IP54 |
| Working Speed | 0~100rpm | Rating Voltage | 230VAC/250VAC |
| Insulation Resistance | ≥500MΩ@500VDC | Dielectric Strength | ≥1500V@50Hz |
| Resistance fluctuation | ≤70MΩ | Contact Material | Precious metal |
| Lead Wire Size | AWG12#/14#/ silver-coated ®UL | Lead Wire Length | Rotor:1000mm, Stator:300mm |

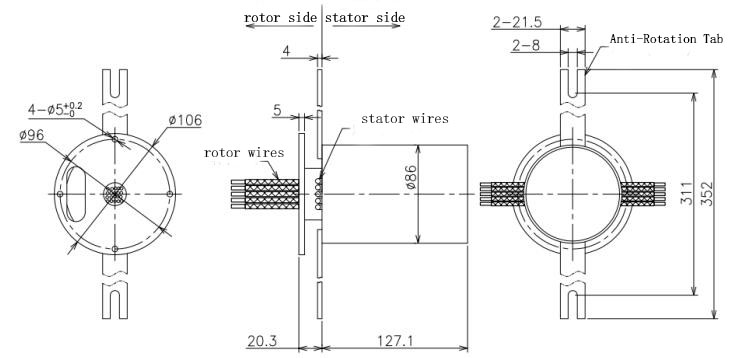

Product Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
