Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring

CENO Electronics Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring

Brand Name : CENO

Model Number : ECN050-06P3

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Circuits : 6*15A

Protection Grade : IP54

Working speed : 0~300rpm

Contact material : Precious metal

Rating Voltage : 0~380VAC/VDC

Housing material : Aluminium alloy

Contact Now

Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring



We called through hole slip ring also as hollow shaft slip ring ,CENO can design this type with hole size from 3mm to 5000mm are optional.Various signal such as Ethernet,USB,HDMI,SDI,Canbus profibus and power are capable to be integrated into one slip rings.



Specification

ECN050-06P3
Rings 6*15A
Voltage 0~380VDC
Electrical noise ≤70mΩ(50rpm)
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP54
Through hole size 50 mm



Features

  • No package loss,no cross talk,low loss
  • Low friction, long life,low torque, smooth rotation
  • Anti-rotation tab for fixing stator side ,easy to install



Applications

  • Motion simulator
  • Large engineering equipment
  • Automation equipment



Optional

  • Circuit number
  • Current rating
  • Signal type
  • IP protection grade

Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring



Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.


Product Tags:

50mm hollow shaft slip ring



15A hollow shaft slip ring



300rpm hollow shaft slip ring


Buy cheap Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring product

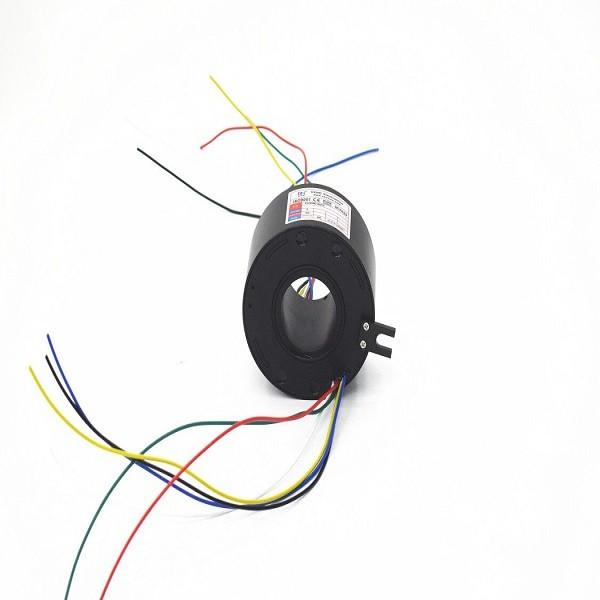

Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring Images
